Edge Based Segmentation: (a) First-Order Derivative (b)Second-Order Derivative (c) Canny (d) Morphological Operation

Introduction

Image segmentation is the division of an image into regions or categories, which correspond to different objects or parts of objects. Every pixel in an image is allocated to one of a number of these categories. A good segmentation is typically one in which:

• pixels in the same category have similar grey scale of multivariate values and form a connected region,
• neighboring pixels which are in different categories have dissimilar values.

Edge Based Image Segmentation

Edge-based segmentation is one of the most popular implementations of segmentation in image processing. It focuses on identifying the edges of different objects in an image. This is a crucial step as it helps you find the features of the various objects present in the image as edges contain a lot of information you can use.
Edge detection is widely popular because it helps you in removing unwanted and unnecessary information from the image. It reduces the image’s size considerably, making it easier to analyse the same. Algorithms used in edge-based segmentation identify edges in an image according to the differences in texture, contrast, grey level, colour, saturation, and other properties. You can improve the quality of your results by connecting all the edges into edge chains that match the image borders more accurately.

Gradient

In image processing, a gradient refers to the rate of change of intensity in an image. Mathematically, the gradient is a vector field that points in the direction of the greatest rate of increase of intensity and whose magnitude represents the rate of change in that direction. For edge detection, we are primarily interested in regions of an image where there is a large change in pixel intensity—typically indicating the presence of an edge.
In image processing, a gradient refers to the directional change in the intensity or color in an image. Mathematically, the gradient of an image function f(x, y) is a vector that points in the direction of the greatest rate of increase off, and whose magnitude is the rate of change in that direction:

Where:

• ∂f/∂x: the partial derivative in the horizontal direction (gradient in x-direction)
• ∂f/∂y: the partial derivative in the vertical direction (gradient in y-direction)

The magnitude of the gradient is given by:

And the direction (angle) of the gradient is:

Steps in Edge Detection

Algorithms for edge detection contain three steps:

1. Filtering: Since gradient computation based on intensity values of only two points are susceptible to noise and other vagaries in discrete computations, filtering is commonly used to improve the performance of an edge detector with respect to noise. However, there is a trade-off between edge strength and noise reduction. More filtering to reduce noise results in a loss of edge strength.
2. Enhancement: In order to facilitate the detection of edges, it is essential to determine changes in intensity in the neighborhood of a point. Enhancement emphasizes pixels where there is a significant change in local intensity values and is usually performed by computing the gradient magnitude.
3. Detection: We only want points with strong edge content. However, many points in an image have a nonzero value for the gradient, and not all of these points are edges for a particular application. Therefore, some method should be used to determine which points are edge points. Frequently, thresholding provides the criterion used for detection. Examples at the end of this section will clearly illustrate each of these steps using various edge detectors.
   Many edge detection algorithms include a fourth step:
4. Localization: The location of the edge can be estimated with subpixel resolution if required for the application. The edge orientation can also be estimated.

Edge Detectors

1. First-order derivative
   • Robert
   • Sobel
   • Perwitt
2. Second-order derivative
   • Laplacian
3. Canny
4. Morphological operations

1. First Order Derivative Operators

   First order derivative operators are used in image processing to detect edges by measuring the rate of change in intensity. These operators highlight regions with strong intensity contrast, which typically correspond to object boundaries. The most commonly used first-order derivative operators include:

   1. Robert Operator

      The Roberts cross operator provides a simple approximation to the gradient magnitude:


      $$G[f[i,j]]=|f[i,j]-f[i+1,j+1]|+|f[i+1,j]-f[i,j+1]|$$


      Using convolution masks, this becomes


      $$G[f[i,j]]=|G_x|+|G_y|$$


      where G_x and G_y are calculated using the following masks:

      $G_x=$

      1	0
      0	-1

      $G_y=$

      0	-1
      1	0




      As with the previous 2 x 2 gradient operator, the differences are computed at the interpolated point [i + 1/2, j + 1/2]. The Roberts operator is an approximation to the continuous gradient at that point and not at the point [i,j] as might be expected. The results of Roberts edge detector are shown in the figures at the end of this section.



   2. Sobel Operator

      As mentioned previously, a way to avoid having the gradient calculated about an interpolated point between pixels is to use a 3 x 3 neighborhood for the gradient calculations. Consider the arrangement of pixels about the pixel [i,j] shown in Figure 1. The Sobel operator is the magnitude of the gradient computed by

      $$M=\sqrt{{S_x}^2+{S_y}^2}$$


      where the partial derivatives are computed by

      $$S_{\mathrm{x}}=(a_2+{\mathrm{ca}}_3+a_4)-(a_0+c{a}_7+a_6)$$
      $$S_{\mathrm{y}}=(a_0+{\mathrm{ca}}_1+a_2)-(a_6+c{a}_5+a_4)$$

      with the constant c = 2.
      Like the other gradient operators, s_x and s_y can be implemented using convolution masks:

      $S_x=$

      -1	0	1
      -2	0	2
      -1	0	1

      $S_y=$

      1	2	1
      0	0	0
      -1	-2	-1

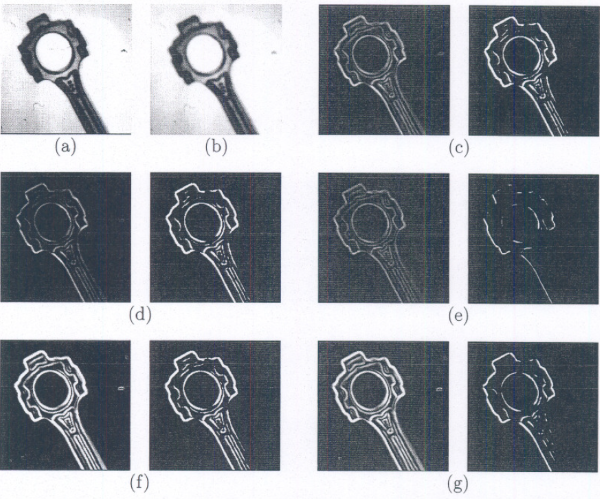

      Note that this operator places an emphasis on pixels that are closer to the center of the mask. The figures at the end of this section show the performance of this operator. The Sobel operator is one of the most commonly used edge detectors.

      a0	a1	a2
      a7	[i, j]	a3
      a6	a5	a4



   3. Prewitt Operator

      The Prewitt operator uses the same equations as the Sobel operator, except that the constant c = 1. Therefore:

      $S_x=$

      -1	0	1
      -1	0	1
      -1	0	1

      $S_y=$

      1	1	1
      0	0	0
      -1	-1	-1




      Note that, unlike the Sobel operator, this operator does not place any emphasis on pixels that are closer to the center of the masks. The performance of this edge detector is also shown in the figures at the end of this section.

2. Second Order Derivative Operators

   The edge detectors discussed earlier computed the first derivative and, if it was above a threshold, the presence of an edge point was assumed. This results in detection of too many edge points. A better approach would be to find only the points that have local maxima in gradient values and consider them edge points. This means that at edge points, there will be a peak in the first derivative and, equivalently, there will be a zero crossing in the second derivative. Thus, edge points may be detected by finding the zero crossings of the second derivative of the image intensity. There are two operators in two dimensions that correspond to the second derivative: the Laplacian and second directional derivative.

   1. Laplacian Operator

      The second derivative of a smoothed step edge is a function that crosses zero at the location of the edge (see Figure 5.8). The Laplacian is the two-dimensional equivalent of the second derivative. The formula for the Laplacian of a function f (x, y) is

      $${\nabla }^{2}f(x,y)=\frac{{\partial }^{2}f}{{\mathrm{\partial x}}^2}+\frac{{\partial }^{2}f}{{\mathrm{\partial y}}^2}$$


3. Canny Edge Detector

   The Canny edge detector is the first derivative of a Gaussian and closely approximates the operator that optimizes the product of signal-to-noise ratio and localization. The Canny edge detection algorithm is summarized by the following notation. Let I[i, j] denote the image. The result from convolving the image with a Gaussian smoothing filter using separable filtering is an array of smoothed data,

   $$S[i,j]=G[i,j;\sigma ]\ast I[i,j]$$


   where σ is the spread of the Gaussian and controls the degree of smoothing. The gradient of the smoothed array S[i, j] can be computed using the 2 x 2 first-difference approximations to produce two arrays P[i,j] and Q[i, j] for the x and y partial derivatives:

   $$P[i,j]\approx \left(S\right[i,j+1]-S[i,j]+S[i+1,j+1]-S[i+1,j\left]\right)/2$$
   $$Q[i,j]\approx \left(S\right[i,j]-S[i+1,j]+S[i,j+1]-S[i+1,j+1\left]\right)/2$$

   The finite differences are averaged over the 2 x 2 square so that the x and y partial derivatives are computed at the same point in the image. The magnitude and orientation of the gradient can be computed from the standard formulas for rectangular-to-polar conversion:

   $$M[i,j]=\sqrt{{P[i,j]}^2+{Q[i,j]}^2}$$
   $$\theta [i,j]=\arctan (Q[i,j],P[i,j])$$


   where the arctan function takes two arguments and generates an angle over the entire circle of possible directions. These functions must be computed efficiently, preferably without using floating-point arithmetic. It is possible to compute the gradient magnitude and orientation from the partial derivatives by table lookup. The arctangent can be computed using mostly fixed-point arithmetic2 with a few essential floating-point calculations performed in software using integer and fixed-point arithmetic.

4. Morphological Operations

   Morphological transformations are some simple operations based on the image shape. It is normally performed on binary images. It needs two inputs, one is our original image, second one is called structuring element or kernel which decides the nature of operation. Two basic morphological operators are Erosion and Dilation. Then its variant forms like Opening, Closing, Gradient etc also comes into play.

   1. Erosion

      Erosion is a fundamental morphological operation that functions similarly to the natural process of soil erosion — it gradually erodes the boundaries of the foreground object. Typically, the foreground is represented in white (pixel value = 1), and the background in black (pixel value = 0).

      During erosion, a structuring element (or kernel) is slid over the image, much like in 2D convolution. For a pixel in the output image to be set to 1, all pixels under the kernel in the original image must also be 1. If even one pixel under the kernel is 0, the output pixel is set to 0.

      As a result, pixels at the boundaries of white regions are removed, causing the white (foreground) areas to shrink. The extent of erosion depends on the size and shape of the structuring element.

      Effects of Erosion:
      • Removes small white noise
      • Separates objects that are connected
      • Reduces thickness of foreground objects

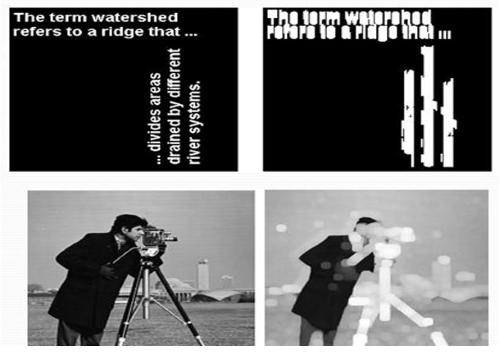

   2. Dilation

      Dilation is the morphological operation that performs the inverse of erosion. While erosion reduces the boundaries of foreground objects, dilation expands them.

      In dilation, a structuring element (kernel) slides over the binary image. For each position of the kernel, the corresponding pixel in the output image is set to 1 (white) if at least one pixel under the kernel in the input image is 1. In other words, if any part of the kernel overlaps with a white pixel in the original image, the output pixel is set to white.

      This process increases the size of the foreground objects (white regions), causing them to grow outward by a margin defined by the structuring element.

      Effects of Dilation:
      • Expands object boundaries, filling small holes and gaps
      • Useful after erosion to restore object size (a sequence called opening)
      • Bridges small breaks or connects disjoint parts of objects
      • Fills in gaps in object contours or outlines


   3. Opening

      Opening is a fundamental morphological operation in image processing, defined as an erosion followed by dilation, using the same structuring element for both steps. It is primarily used to remove small objects or noise from an image while preserving the shape and size of larger foreground objects.

      Effects of Opening:
      • Removing salt-and-pepper noise from binary images.
      • Eliminating small unwanted objects (e.g., speckles, dots).
      • Separating weakly connected components.
      • Cleaning up scanned documents, microscopy images, etc.
      • Preprocessing step for shape analysis and feature extraction.


   4. Closing

      Closing is a fundamental morphological operation that is essentially the reverse of Opening. It is performed by applying Dilation followed by Erosion on a binary image. While Opening focuses on removing small objects and shrinking the foreground, Closing works to fill small holes or gaps in the foreground objects, and it is particularly useful for removing small black points within or around the objects.

      Effects of Closing:
      • Closing small holes or gaps inside the foreground objects, making them more solid and continuous.
      • Eliminating small black noise points (often referred to as salt noise) that are scattered on or near the objects.
      • Smoothening object contours by closing small imperfections while preserving the general shape of the objects.
      • Joining broken parts of an object, making them appear as a single connected structure.

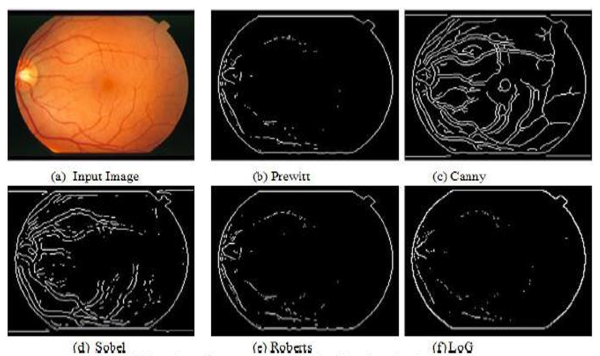

Comparison of Edge Detectors
