Procedure
Step 1. Click on the 'Control Circuit button' in Control Circuit Section.
Step 2.Get the required components in Control Circuit Section by clicking on components displayed in Components Section.

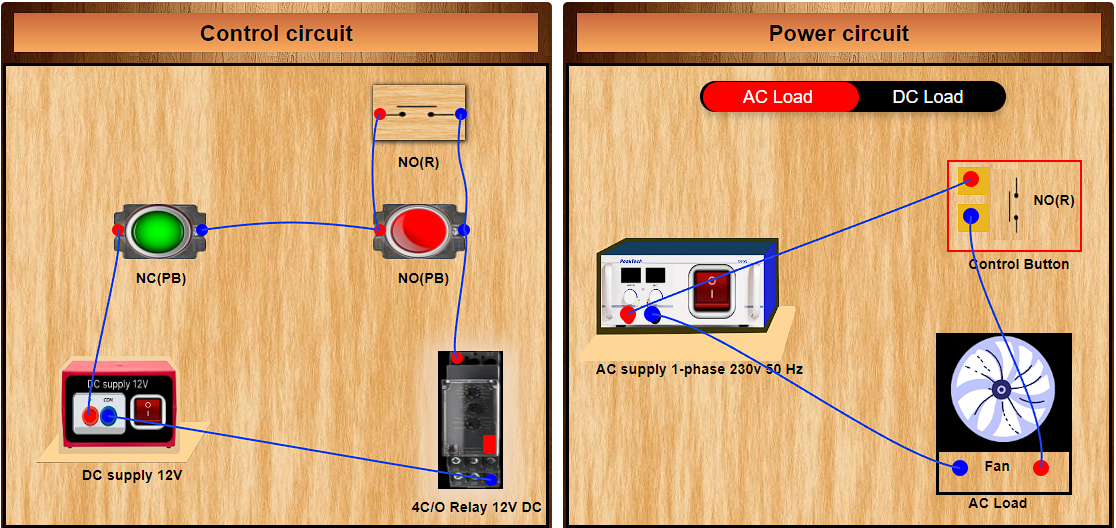

Step 3.Establish the connections according to the control circuit diagram provided in Fig.4.
Step 4.Verify the control circuit by clicking on the 'Check Connections 1 button.'
Step 5.If Wrong Connections then click on 'Delete Connections 1 button' to delete connections and make the right connections .
Step 6.Once the Control Circuit is verified, switch to the Power Circuit Section, Choose between AC Load & DC Load .
Step 7.Get the required components in Power Circuit Section by clicking on components displayed in Components Section.
Step 8.Make the connections according to the Power Circuit diagram provided in Fig. 5 and Fig. 6.
Step 9.Click on the 'Check Connections 2 button' to validate the Power Circuit.
Step 10.If Wrong Connections then click on 'Delete Connections 2 button' to delete connections and make the right connections .
Step 11.Once the Power Circuit is verified, Switch On the Power Supplies & Enable the 'Push Button' by a mouse hover to turn the load ON.
Step 12. To turn the load OFF, enable the 'OFF Push button' by a mouse hover.
Step 13. Click on the 'Print button'to get a print of the webpage.
