Instructions

STEP 1 : Click on "START" button to create the potential of the fuel cell.

STEP 2 : Make the connections as per the instructions given below :
V1 --> S1, S2 --> A1, A2 --> B1, B2 --> V2

STEP 3 : Click on "CHECK" button for checking the connections.

Note: Click on a label to remove the connection.

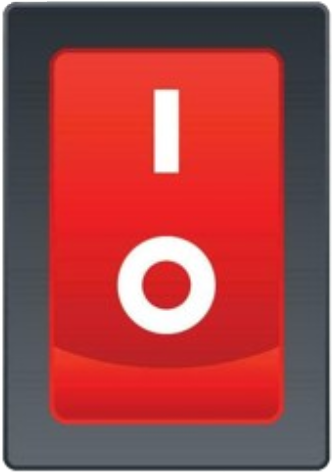

STEP 4 : Now, Click ON the main switch.

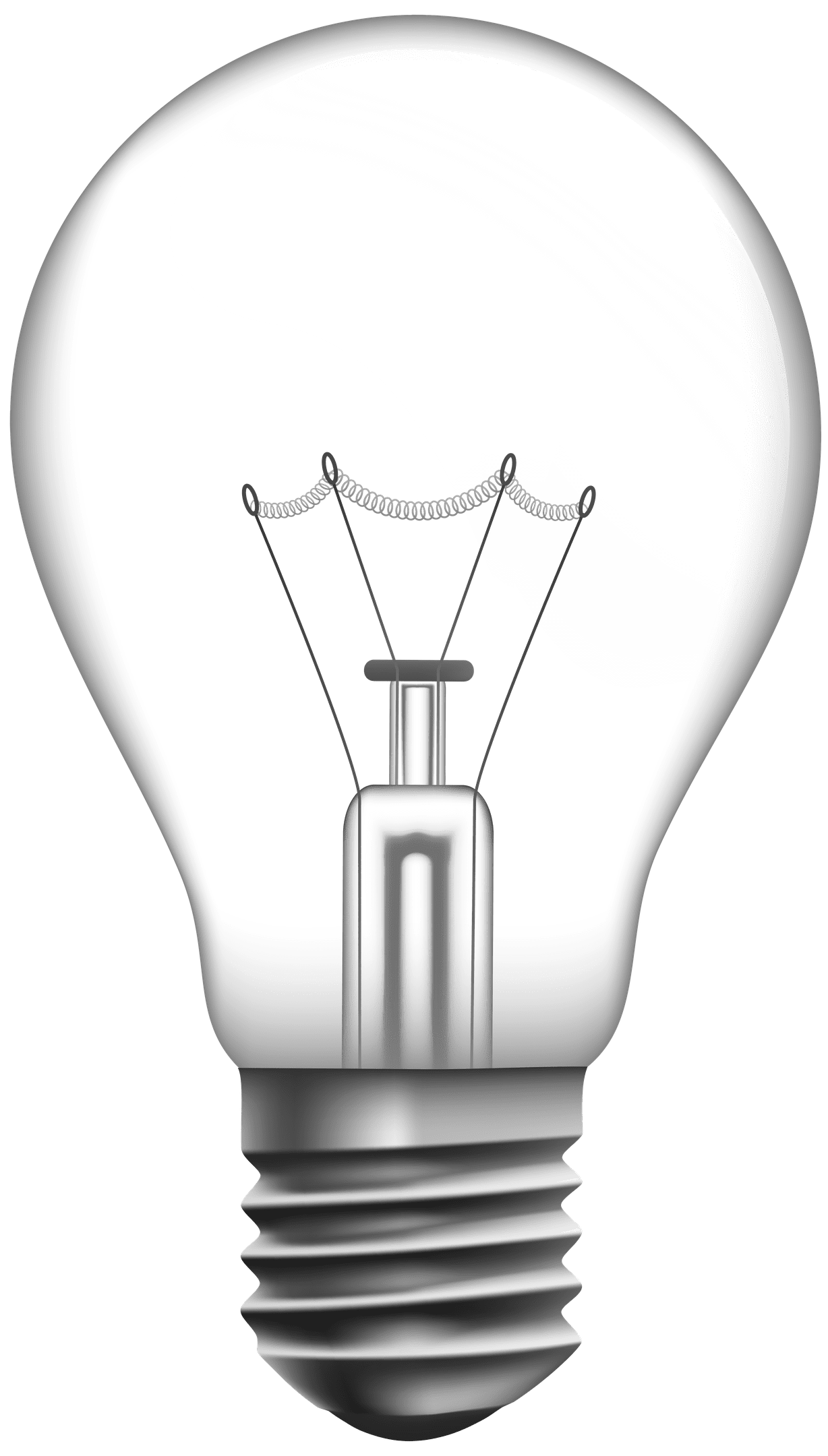

Note : 1) Bulb starts to glow till voltage drops to zero.
2) The live VI Graph will be generated automatically.

STEP 5 : Click on "PRINT" button to print the simulation.

STEP 6 : Click on "RESET" button to reset the experiment.
