Instructions

Step 1: Make the connections as per the instructions given below.

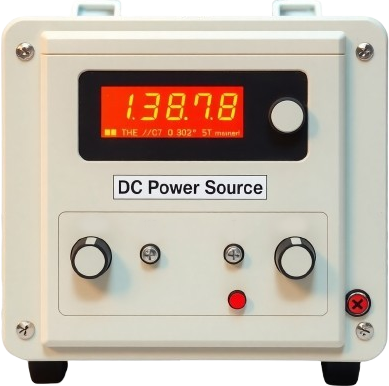

• B1 ↔ S1, B2 ↔ S2
• S3 ↔ M1, S4 ↔ M2
• S5 ↔ A1, A2 ↔ M3

Step 2: Verify Connections

Click the "CHECK" button to ensure all connections are properly made.

Note: Click on the label to remove a connection if needed.

Step 3: Power On

Click the power button on the Motor-speed Controller .

Step 4: Add Weight

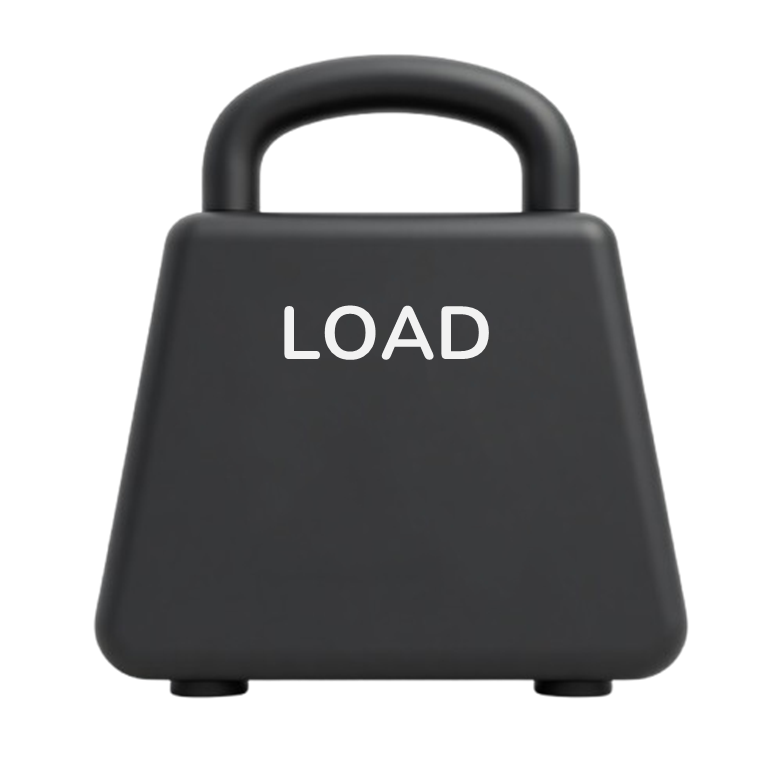

Place the weight onto the system as required.

Step 5: Add to Table

Continue adding data to the table until it is full.

Step 6: Generate the Graph

Click on the "GRAPH" button to visualize the performance data.

Step 7: Click on "RESET" button to reset the simulation.
